Close Type Hydraulic Quick Coupling from China manufacturer - Cixi Zonghan Jieli Hardware Parts Factory

Price:	0.5~20.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: H101

Production Capacity: 10000sets/month

Delivery Date: 15days

Specifications: 1/4"~1/2"

Rated Flow: 3~224GPM

Material of Seal: PTFE

Gaskets: NBR

Positioning Ball: Stainless Steel

Means of Transport: Ocean,Land,Air

Packing: plastic bag+inner box+carto...

Brand Name: OEM

Rated Pressure: 2000PSI~5000PSI

Temperture Range: -20℃~+80℃

Surface: Nickle Plated,Chrome Plated

Spring: Stainless Steel

Export Area: All over the world

Material of Body and Plug: Galvanized Steel
Production Standard: ISO
Technics: Forged and machine through CNC lathes
Export Area:All over the wrold

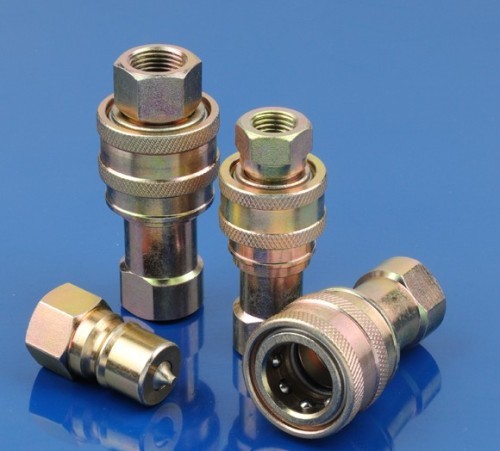

Close Type Hydraulic Quick Coupling

1. Products Feature

A: The H101 series hydraulic quick couplings are mainly used for construction equipment,forest equipment,hydraulic machinery and oil equipment and other required bydraulic applications.

B. Poppet valves are available to prevent ncoupled leakage,Poppet vavles open automatically when coupled within rated working pressure to keep the flow expeditely.

C. Critical parts are hardened for durability.

D. H101 series conforms to the standard of ISO7241-B.

E: Compatible with PARKER 60 series, FASTER ANV series,AEROQUIP FD45 series and HANSEN HK series.

2. Specifications

Specifications
Size	1/4"	3/8"	1/2"	3/4"	1"
Rated Pressure	5000PSI	4000PSI	4000PSI	3000PSI	3000PSI
Rated Flow	3GPM	6GPM	12GPM	28GPM	50GPM
Temperature	-20℃~+80℃
Standard Seal	Flourocarbon
