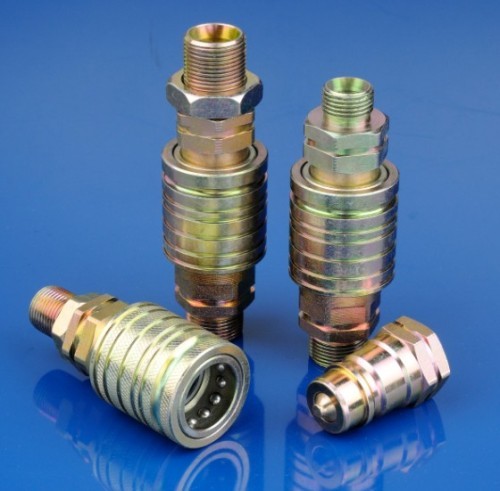

Push and Pull Type Hydraulic Quick Coupler With Male Thread

Price:	0.5~30.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: H203-SM

Production Capacity: 10000sets/month

Delivery Date: 15days

Specifications: 3/8"~3/4"

Rated Flow: 3~224GPM

Material of Seal: PTFE

Shape: Hexagon

Export Area: All over the world

Means of Transport: Ocean,Land,Air

Packing: plastic bag+inner box+carto...

Brand Name: OEM

Rated Pressure: 3000PSI

Temperture Range: -20℃~+80℃

Surface: Color Zinc Plated

Technics: Forging and machine

Material of Body: Steel

Connection: Male Thread
Manufactures according to customers' design and samples.
Export to USA,Middle East,European,Asia and so on countries.

Push and Pull Type Hydraulic Quick Coupler With Male Thread

1. Products features

A: The H203 series hydraulic quick coulpings are maninly used for construction equipment,forest equipment,hydraulic machiney and oil equipment and other required hydraulic applications.

B: Poppet valves are available to prevent uncoulped leakage. Poppet valves open automatically when coupled within rated working pressure to keep the flow expenditely.

C: H203series conforms to the standard ISO5675.

D: Compatible with PARKER 4250 series, FASTER CVP-CNV series.

E: Critical parts are hardened for durability.

Push and Pull Type Hydraulic Quick Coupler With Male Thread

2. Pressure Drop-in PSID

3. Drawing and technology data


Part No.	LS	￠D	HS	A	T
H203-04SM8L	73	38	27	12	M14*1.5
H203-04SM10L	73	38	27	12	M16*1.5
H203-04SM12L	73	38	27	12	M16*1.5
H203-04SM15L	75	38	27	14	M22*1.5
H203-04SM18L	75	38	27	14	M26*1.5
H203-04SM10LS	73	38	27	12	M18*1.5
H203-04SM12LS	73	38	27	12	M20*1.5
H203-04SM14LS	75	38	27	14	M22*1.5
H203-04SM16LS	75	38	27	14	M24*1.5
H203-04SM20LS	94.8	38	30	35	M30*1.5


Part No.	LS	C	HP	A	T
H203-04PM8L	58	27	27	12	M14*1.5
H203-04PM10L	58	27	27	12	M16*1.5
H203-04PM12L	58	27	27	12	M16*1.5
H203-04PM15L	60	27	27	14	M22*1.5
H203-04PM18L	60	27	27	14	M26*1.5
H203-04PM10LS	58	27	27	12	M18*1.5
H203-04PM12LS	58	27	27	12	M20*1.5
H203-04PM14LS	60	27	27	14	M22*1.5
H203-04PM16LS	60	27	27	14	M24*1.5
H203-04PM20LS	81	27	30	35	M30*1.5
