Thread Locked Type Hydraulic Quick Coupling

Price:	0.5~20.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: H501

Production Capacity: 10000sets/month

Delivery Date: 15days

Specifications: 1/4",3/8"

Rated Flow: 3GPM,6GPM

Material of Seal: Flourocarbon

Technics: Forging and machine

Positioning Ball: Stainless Steel

Means of Transport: Ocean,Land,Air

Packing: plastic bag+inner box+carto...

Brand Name: OEM

Rated Pressure: 10000PSI

Temperture Range: -20℃~+100℃

Surface: Nickle Plated,Chrome Plated

Machine Equipment: CNC lathes

Export Area: All over the world

The design for extreme high pressure
The interface seal is polyurethane which resists high pressure extrusion.
Export Area:All over the world

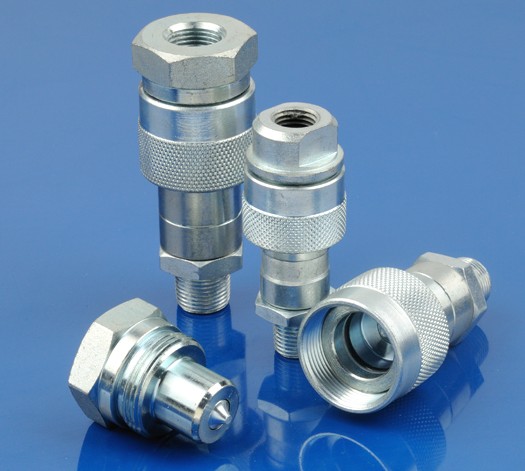

Thread Locked Type Hydraulic Quick Coupling

1. Products features

A: H501 series couplings with their threaded union locking system and precision ball-type check valves are designed for extreme high pressure applications such an poratable hydraulic jacks.

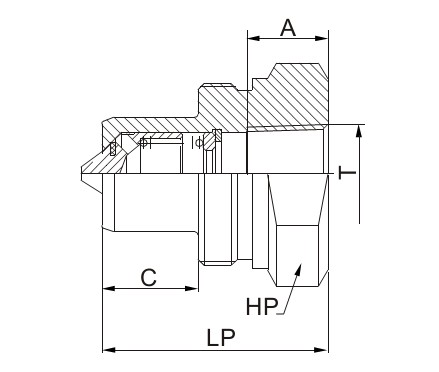

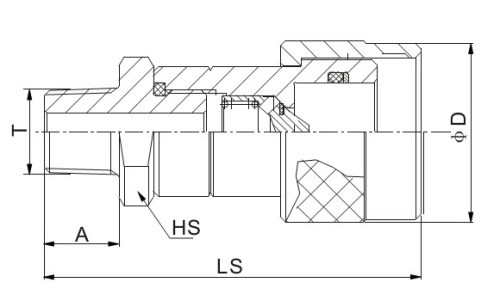

B: H501 series employs a thread sleeve locking mechanism, mates with matching male threads on the nipple. The two halves must be manually threaded together for connection.

C: The valve provides the mental-to-mental seal between the chrome steel balls or top rod and coined seat.

D: Critical parts are hardened for durability.

E: The interface seal is polyurethane which resists high pressure extrusion.

F: Compatible with PARKER 3000 series, FASTER PRRM series.

Thread Locked Type Hydraulic Quick Coupling

2. Specifications

Specifications
Size	1/4"	3/8"
Rated Pressure	10000PSI	10000PSI

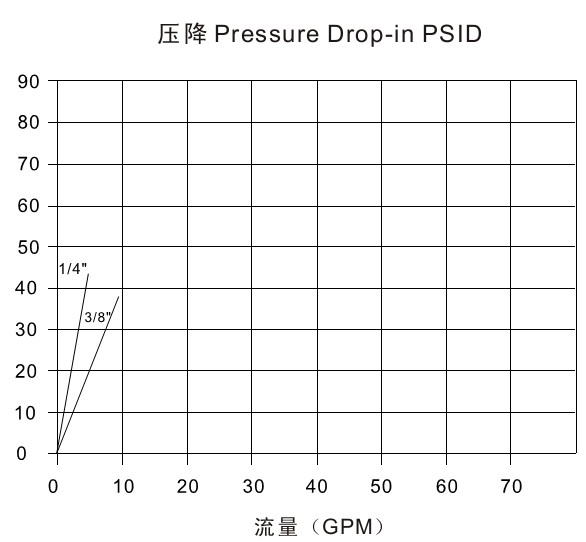

Rated Flow	3GPM	6GPM
Temperature Range	-20℃~+100℃
Standard seal material	Flourocarbon
