Close Type Hydraulic Quick Coupling With Steel

Price:	0.5~30.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: KZE

Production Capacity: 10000sets/month

Delivery Date: 15days

Specifications: 1/4"~2"

Seal Material: NBR

Material of Seal: PTFE

Shape: Hexagon

Export Area: All over the world

Means of Transport: Ocean,Land,Air

Packing: plastic bag+inner box+carto...

Brand Name: OEM

Rated Pressure: 2000PSI~5000PSI

Temperture Range: -20℃~+80℃

Surface: Nickle Plate, Chrome Plated

Technics: Forging and machine

Material of Body: Steel

Material of Body and Plug: Steel
Used for construction equipment,forest equipment,hydraulic machinery and oil equipment.
Certificate: ISO9001:2008

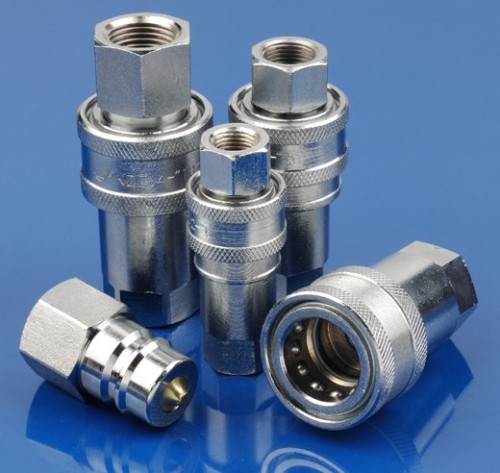

KZE Close Type Hydraulic Quick Coupling

1. Products features

A: The KZE series hydraulic quick coupling are mainly Used for construction equipment,forest equipment,hydraulic machinery and oil equipment and other required hydraulic applications.

B: Poppet valves are available to prevent uncloupled leakage. Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.

C: Critical parts are hardened for durability.

D: The coupling can meet the standard of domestic oil, is the most widely used one of the hydraulic quick coupling.

KZE Close Type Hydraulic Quick Coupling

2. Specifications

Specifications
Size	1/8"	1/4"	3/8"	1/2"	3/4"	1"	11/4"	11/2"	2"
Pressure (PSI)	5000	3000	3000	3000	3000	3000	2000	2000	1500
Temperature	-20℃~+80℃
Seal Material	NBR

KZE Close Type Hydraulic Quick Coupling

3. Drawing and technology data


Part No.	LS	￠D	HS	A	T
KZE-1SF	48	24	14	10	1/8"
KZE-2SF	58	28	19	12.5	1/4"
KZE-3SF	65	35	22	13	3/8"
KZE-4SF	66	39.5	27	17	1/2"
KZE-6SF	79	49	36	18	3/4"
KZE-8SF	95.5	58	41	21	1"
KZE-10SF	115	70	54	27	11/4"
KZE-12SF	124	79	60	27	11/2"
KZE-16SF	132	102	77	30	2"


Part No.	LP	C	HP	A	T
KZE-1PF	29	19.5	14	10	1/8"
KZE-2PF	35.5	22.5	19	12.5	1/4"
KZE-3PF	40	25	22	13	3/8"
KZE-4PF	46	29	27	17	1/2"
KZE-6PF	55	39	36	18	3/4"
KZE-8PF	59.5	44	41	21	1"
KZE-10PF	70	45	52	27	11/4"
KZE-12PF	75	49	60	27	11/2"
KZE-16PF	80	52	75	30	2"
