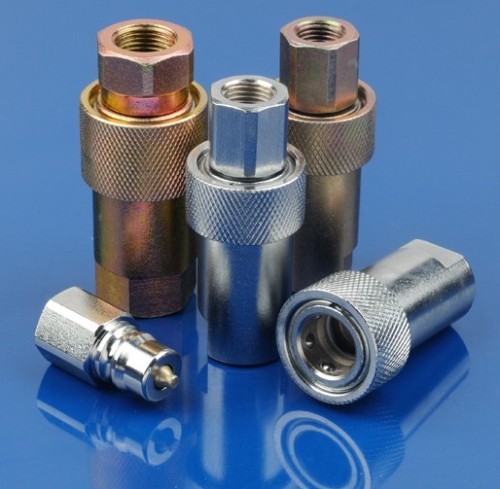

Close Type Hydraulic Quick Coupling With Nickle Plated

Price:	0.5~30.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: H401

Production Capacity: 10000sets/month

Delivery Date: 15days

Specifications: 1/4"~2"

Rated Flow: 3~224GPM

Material of Seal: PTFE

Shape: Hexagon

Export Area: All over the world

Means of Transport: Ocean,Land,Air

Packing: plastic bag+inner box+carto...

Brand Name: OEM

Rated Pressure: 1500PSI~5000PSI

Temperture Range: -20℃~+80℃

Surface: Color Zinc Plated,Nickle Pl...

Technics: Forging and machine

Material of Body: Steel

Mainly suitable for fluid
Open close type ends
Processing operations:Material,Forged,Machine,Surface,Packing
Processing equipment: CNC lathes

Close Type Hydraulic Quick Coupling With Nickle Plated

1. Products features

A: The H003 series hydraulic quick coulpings are maninly used for construction equipment,forest equipment,hydraulic machiney and oil equipment and other required hydraulic applications.

B: Poppet valves are available to prevent uncoulped leakage. Poppet valves open automatically when coupled within rated working pressure to keep the flow expenditely.

C: Critical parts are hardened for durability.

D: Compatible with NITTP HSPcupla series.

Close Type Hydraulic Quick Coupling With Nickle Plated

2. Specifications

Specifications
Size	1/8"	1/4"	3/8"	1/2"	3/4"	1"	11/4"	11/2"	2"
Pressure (PSI)	3000	3000	3000	3000	3000	2000	2000	1500
Rated Flow (GPM)	3	6	12	28	50	88	220	224
Temperature	-20℃~+80℃
Seal Material	Flourocabon

Close Type Hydraulic Quick Coupling With Nickle Plated

3. Drawing and technology data


Part No.	LS	￠D	HS	A	T
H401-02SF	53	27.5	19	12	1/4"
H401-03SF	60	33	23	13	3/8"
H401-04SF	72	43	35	16	1/2"
H401-06SF	72	43	35	18	3/4"
H401-08SF	93	58	46	23	1"
H401-10SF	138	87	58	24	11/4"
H401-12SF	138	87	58	24	11/2"
H401-16SF	198	123	80	32	2"


Part No.	LP	C	HP	A	T
H401-02PF	36	17.5	19	12	1/4"
H401-03PF	38	22.5	23	13	3/8"
H401-04PF	50	27.5	32	16	1/2"
H401-06PF	50	27.5	32	18	3/4"
H401-08PF	61	36	41	23	1"
H401-10PF	80	58	58	23	11/4"
H401-12PF	80	58	58	23	11/2"
H401-16PF	115	83	90	23	2"
