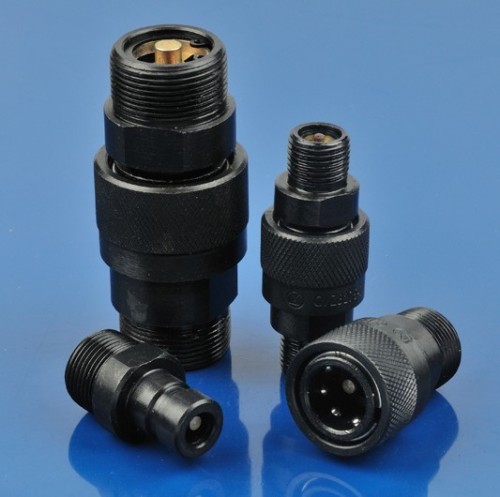

Open-Close Type Hydraulic Quick Coupling With Black Surface

Price:	0.5~50.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Q/ZB275-77

Production Capacity: 10000sets/month

Delivery Date: 15days

Specifications: M16*1.5~M68*2

Surface: Black

Material of Seal: Flourocarbon

Material of body and plug: Brass

Positioning Ball: Stainless Steel

Means of Transport: Ocean,Land,Air

Packing: plastic bag+inner box+carto...

Brand Name: OEM

Rated Pressure: 2000PSI~5000PSI

Temperture Range: -20℃~+100℃

Technics: Forged and machine

Spring: Stainless Steel

Export Area: All over the world

Connection:NPT,BSPP,BSPT,G, ZG Male thread
China commonly used models.
Suitable for construction equipment,forest equipment,hydraulic machinery,etc

Open-Close Type Hydraulic Quick Coupling With Black Surface

1. Products features

A: The Q/ZB275-77 series hydraulic quick coulpings are maninly used for construction equipment,forest equipment,hydraulic machiney and oil equipment and other required hydraulic applications.

B: Poppet valves are available to prevent uncoulped leakage. Poppet valves open automatically when coupled within rated working pressure to keep the flow expenditely.

C: Critical parts are hardened for durability.

D: The couread coupling can meet the standard of domestic oil field, the thread connection, is the most widely used one of the hydraulic quick coupling.

Open-Close Type Hydraulic Quick Coupling With Black Surface

2. Specifications.

Specifications
Size	*M161.5**	*M221.5**	*M271.5**	*M301.5**	*M362**	*M422**	*M522**	*M602**	*M682**
Pressure (PSI)	5000	5000	5000	5000	4000	4000	3000	2000	2000
Temperature Range	-20℃~+100℃
Seal Material	Flourocabon

Open-Close Type Hydraulic Quick Coupling With Black Surface

3. Drawing and technology data


Part No.	LS	￠D	HS	A	T
Q/ZB275-7706SM	44	28	19	13	M16*1.5
Q/ZB275-7708SM	46	31	22	13	M22*1.5
Q/ZB275-7710SM	52	36	27	13	M27*1.5
Q/ZB275-7715SM	56	40	30	16	M30*1.5
Q/ZB275-7720SM	65	48	36	16.5	M36*2
Q/ZB275-7725SM	78	56	46	20	M42*2
Q/ZB275-7732SM	84	66	55	22	M52*2
Q/ZB275-7740SM	93	77	65	26	M60*2
Q/ZB275-7750SM	99	82	70	30	M68*2


Part No.	LP	C	HS	A	T
Q/ZB275-7706PM	40	18	19	13	M16*1.5
Q/ZB275-7708PM	41	19	22	13	M22*1.5
Q/ZB275-7710PM	46	22	27	13	M27*1.5
Q/ZB275-7715PM	53	24	30	16	M30*1.5
Q/ZB275-7720PM	59	29	36	16.5	M36*2
Q/ZB275-7725PM	66	31	46	20	M42*2
Q/ZB275-7732PM	79	6	55	22	M52*2
Q/ZB275-7740PM	90	39.5	65	26	M60*2
Q/ZB275-7750PM	97	41	70	30	M68*2
