Model No.: H103

Production Capacity: 10000sets/month

Delivery Date: 15days

Specifications: 1/8"~2"

Rated Flow: 1~150GPM

Material of Seal: PTFE

Material of body and plug: Stainless Steel

Positioning Ball: Stainless Steel

Means of Transport: Ocean,Land,Air

Packing: plastic bag+inner box+carto...

Brand Name: OEM

Rated Pressure: 1000PSI~2000PSI

Temperture Range: -20℃~+80℃

Surface: Natural Color

Spring: Stainless Steel

Export Area: All over the world

Material of Body and Plug: Stainless Steel
Production Standard: ISO7241-B
Technics:Machine through CNC lathes

KZF Close Type Hydraulic Quick Coupling

1. Products features

A: The H103 series hydraulic quick coulpings are maninly used for construction equipment,forest equipment,hydraulic machiney and oil equipment and other required hydraulic applications.

B: Poppet valves are available to prevent uncoulped leakage. Poppet valves open automatically when coupled within rated working pressure to keep the flow expenditely.

C: Material" SUS 316 or SUS 304.

D: H103 KZF series conforms to the standard ISO7241-B.

E: Compatible with PARKER 60 series, FASTER ANV series, AEROQUIP FD45 series and HANSEN HK series.

KZF Close Type Hydraulic Quick Coupling

2. Specifications

Specifications
Size	1/8"	1/4"	3/8"	1/2"	3/4"	1"	11/4"	11/2"	2"
Pressure (PSI)	2000	2000	1500	1500	1500	1000	1000	1000	1000
Rated Flow (GPM)	1	3	6	12	28	50	75	100	150
Temperature	-20℃~+100℃
Seal Material	Flourocabon

KZF Close Type Hydraulic Quick Coupling

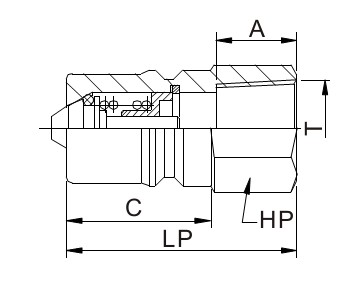

3. Drawing and technology data


Part No.	LS	￠D	HS	A	T
H103-01SF	48	24	14	10	1/8"
H103-02SF	58	28	19	12.5	1/4"
H103-03SF	65	35	23	13	3/8"
H103-04SF	72	45	35	14	1/2"
H103-06SF	88	55	35	17	3/4"
H103-08SF	102	65	46	23	1"
H103-10SF	115	79	58	27	11/4"
H103-12SF	124	79	58	27	11/2"
H103-16SF	132	109	80	30	2"


Part No.	LP	C	HP	A	T
H103-01PF	29	19	14	10	1/8"
H103-02PF	36	22.5	19	12.5	1/4"
H103-03PF	40	25	21	13	3/8"
H103-04PF	44	28	29	14	1/2"
H103-06PF	52	36	35	17	3/4"
H103-08PF	62	40	41	23	1"
H103-10PF	75	45	54	27	11/4"
H103-12PF	75	49	63	27	11/2"
H103-16PF	80	52	77	30	2"
