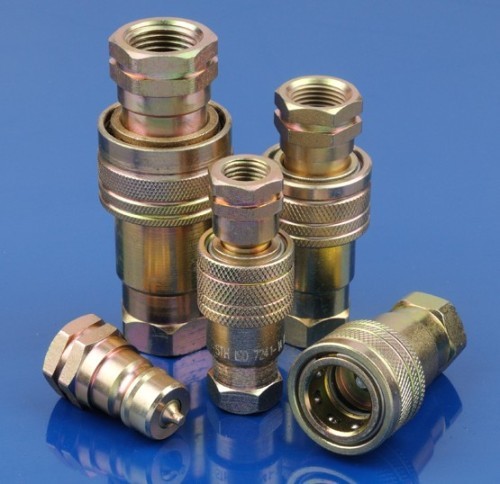

Close Type Hydraulic Quick Coupling With Color Zinc Plated

Price:	0.5~30.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: H003

Production Capacity: 10000sets/month

Delivery Date: 15days

Specifications: 1/4"~2"

Rated Flow: 3~224GPM

Material of Seal: PTFE

Shape: Hexagon

Export Area: All over the world

Means of Transport: Ocean,Land,Air

Packing: plastic bag+inner box+carto...

Brand Name: OEM

Rated Pressure: 2000PSI~5000PSI

Temperture Range: -20℃~+80℃

Surface: Color Zinc Plated

Technics: Forging and machine

Material of Body: Steel

Conforms to the standard of ISO7241-A.
Critical parts are hardened for durability.
Processing operations:Material,Forged,Machine,Surface,Packing

Close Type Hydraulic Quick Coupling With Color Zinc Plated

1. Products features

A: The H003 series hydraulic quick coulpings are maninly used for construction equipment,forest equipment,hydraulic machiney and oil equipment and other required hydraulic applications.

B: Poppet valves are available to prevent uncoulped leakage. Poppet valves open automatically when coupled within rated working pressure to keep the flow expenditely.

C: Critical parts are hardened for durability.

D: H003 series conforms to the standard of ISO7241-A.

E: Compatibale with PARKER 6600 series, FASTER ANV series, AEROQUIP 5600 series and HANSEN HA 15000series.

Close Type Hydraulic Quick Coupling With Color Zinc Plated

2. Specifications

Specifications
Size	1/8"	1/4"	3/8"	1/2"	3/4"	1"	11/4"	11/2"	2"
Pressure (PSI)	3000	3000	3000	3000	3000	2000	2000	1500
Rated Flow (GPM)	3	6	12	28	50	88	220	224
Temperature	-20℃~+80℃
Seal Material	Flourocabon

Close Type Hydraulic Quick Coupling With Color Zinc Plated

3. Drawing and technology data


Part No.	LS	￠D	HS	A	T
H003-02SF	50	26	19	13	1/4"
H003-03SF	60.5	31.5	22	14	3/8"
H003-04SF	66	39	27	16	1/2"
H003-06SF	80	48	34	18	3/4"
H003-08SF	99.5	53	41	21	1"
H003-10SF	112	69	50	25	11/4"
H003-12SF	127.5	84.5	60	25.5	11/2"
H003-16SF	158	99	75	36	2"


Part No.	LP	C	HP	A	T
H003-02PF	35.5	15	19	13	1/4"
H003-03PF	42	26.5	22	14	3/8"
H003-04PF	46	26.5	27	16	1/2"
H003-06PF	54	28	34	18	3/4"
H003-08PF	65.5	35	41	21	1"
H003-10PF	70	45	50	25	11/4"
H003-12PF	78	51	60	25.5	11/2"
H003-16PF	98	61	75	36	2"
