Male threaded Push and Pull Type Hydraulic Quick Coupling

Price:	0.5~30.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SH203-SM

Production Capacity: 10000sets/month

Delivery Date: 15days

Specifications: 3/8"~3/4"

Rated Flow: 3~224GPM

Material of Seal: PTFE

Shape: Hexagon

Export Area: All over the world

Means of Transport: Ocean,Land,Air

Packing: plastic bag+inner box+carto...

Brand Name: OEM

Rated Pressure: 3000PSI

Temperture Range: -20℃~+80℃

Surface: Color Zinc Plated

Technics: Forging and machine

Material of Body: Steel

Thread: NPT,BSPP,BSPE,G,ZG
Technics: Forging and machine
Export to all the over world

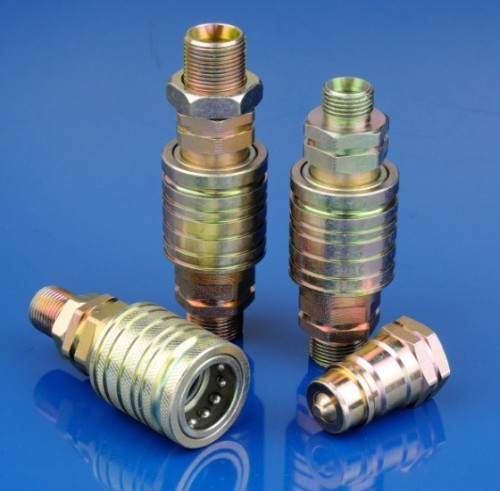

Male threaded Push and Pull Type Hydraulic Quick Coupling

1. Products features

A: The H203 series hydraulic quick coulpings are maninly used for construction equipment,forest equipment,hydraulic machiney and oil equipment and other required hydraulic applications.

B: Poppet valves are available to prevent uncoulped leakage. Poppet valves open automatically when coupled within rated working pressure to keep the flow expenditely.

C: H203 KZD series conforms to the standard ISO5675.

D: Compatible with PARKER 4250 series, FASTER CVP-CNV series.

Male threaded Push and Pull Type Hydraulic Quick Coupling

2. Specifications

3. Drawing and technology data


Part No.	LS	￠D	H2	H1	T
SH203-04SM8L	87	38	27	19	M14*1.5
SH203-04SM10L	87	38	27	24	M16*1.5
SH203-04SM12L	87	38	27	24	M16*1.5
SH203-04SM15L	89	38	27	27	M22*1.5
SH203-04SM18L	89	38	27	30	M26*1.5
SH203-04SM10LS	87	38	27	24	M18*1.5
SH203-04SM12LS	87	38	27	27	M20*1.5
SH203-04SM14LS	89	38	27	27	M22*1.5
SH203-04SM16LS	89	38	27	30	M24*1.5
SH203-04SM20LS	94.8	38	30	36	M30*1.5


Part No.	LS	C	H1	H2	T
SH203-04PM8L	72	27	19	27	M14*1.5
SH203-04PM10L	72	27	24	27	M16*1.5
SH203-04PM12L	72	27	24	27	M16*1.5
SH203-04PM15L	74	27	27	27	M22*1.5
SH203-04PM18L	74	27	30	27	M26*1.5
SH203-04PM10LS	72	27	24	27	M18*1.5
SH203-04PM12LS	72	27	27	27	M20*1.5
SH203-04PM14LS	74	27	27	27	M22*1.5
SH203-04PM16LS	74	27	30	27	M24*1.5
SH203-04PM20LS	81	27	36	30	M30*1.5
